1	Twin Screw Plastic Extruder	1set
2	Vacuum Calibration Tank	1set
3	Hauling Machine	1set
4	Pipe Cutting Machine	1set
5	Stacker	1set

Product application

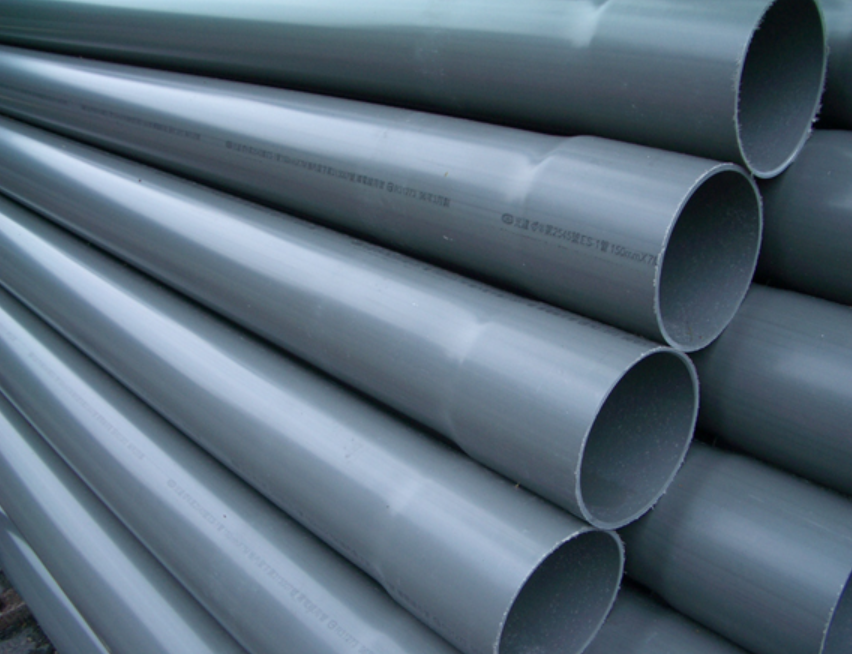

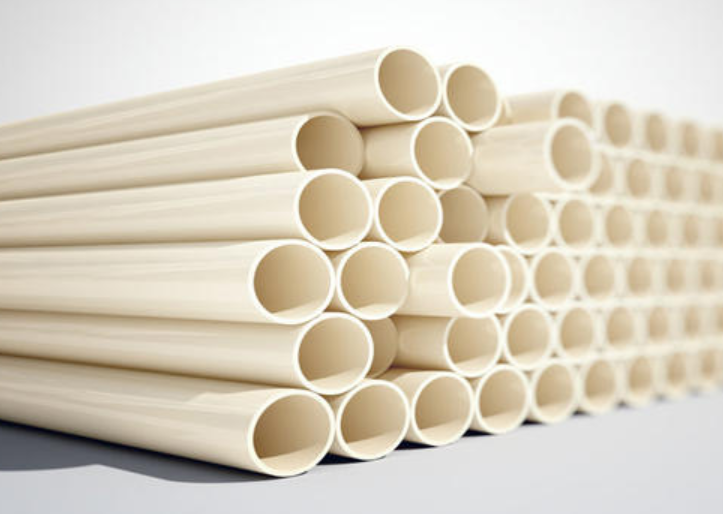

It is mainly used for the production of agricultural water supply and drainage, building water supply and drainage, cable laying,etc. and plastic PVC pipes of various pipe diameters and wall thicknesses. The unit consists of a conical (parallel) twin-screw extruder, a vacuum setting table, a tractor, a cutting machine, a stacking rack, etc.
The screw extruder and traction machine use imported AC frequency conversion speed regulation device, and the vacuum pump and traction motor are all high-quality products.The tractor has two-claw, three-claw, four-claw, six-claw, eight-claw and other traction types.

Technical Parameter

Specifications
Machine Model	FCPL
Processed material	PVC,PE,HDPE,PPR and etc.
Final product shape	Pipe
Output Range (kg/h)	120-1100
Diameter of screw	50mm-1300mm(standard)
Voltage Standard	According to the Voltage of the Customer's Location
Warranty	12 months from the date of bill of lading
Technical services	Project design, factory construction, installation and recommendations, commissioning

Diameter scope (mm)	Conical twin-screw extruder	Motor (kw)	Max.Capacity (kg/h)
16-63	SJZ65/132	37	250-350
16-32	SJZ65/132	55	400-500
20-110	SJZ65/132	37	250-300
50-160	SJZ65/132	37	250-300
50-160	SJZ65/132	55	400-600
75-160	SJZ80/156	75	500-700
110-315	SJZ80/156	75	450-600
250-500	SJZ80/173	75	500-650
315-630	SJZ92/188	110	700-900
400-800	SJZ110/220	200	850-1000
630-1200	SJZ110/220	200	900-1200

Detail Information

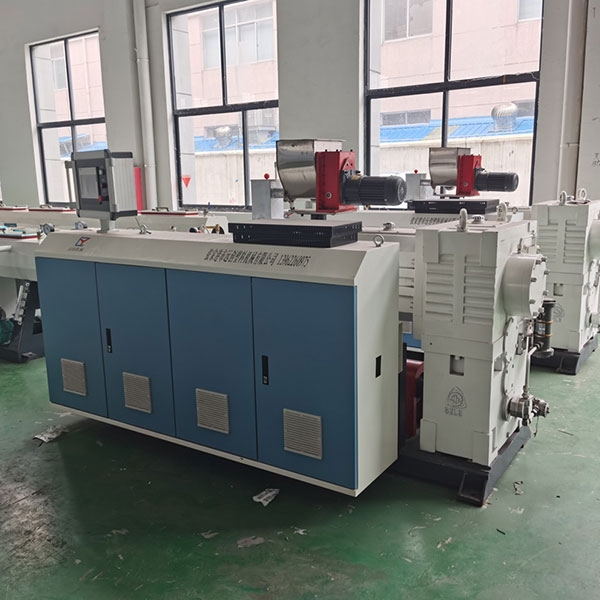

1.Twin Screw Extruder
The extruder of PVC pipe line adopt high efficiency screw & barrel, notched feeding cylinder and is equipped with strong water jacket cooler, which greatly improves its transmission capacity and guarantees high-efficiency extrusion. the gearbox is hardening teeth gearbox with self-lubrication system. The motor adopt Siemens standard motor and speed controlled by ABB inverter. The control system adopts Siemens PLC control or button control.

2.Die Mould
Spacious flow channel design to guarantee high extrusion capacity and good melt.
Optimized temperature control and flow channel design, precise melt temperature control.

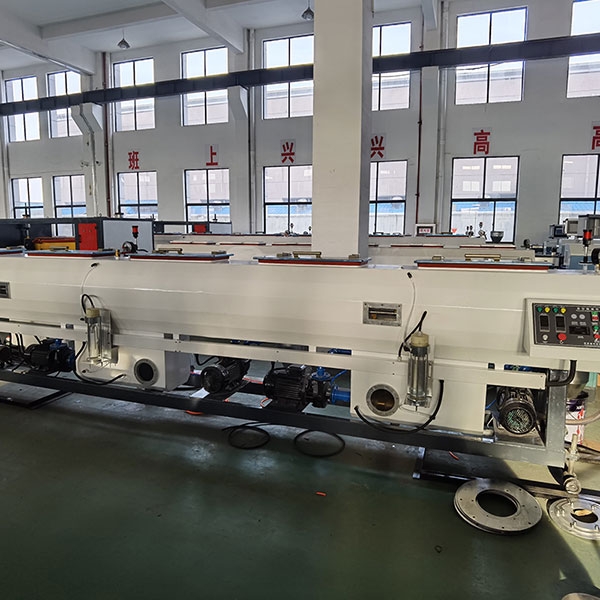

3.Vacuum calibration tank
The tank body of vacuum calibration tank adopt two chamber structure the vacuum calibration and cooling parts. Both of vacuum tank and spraying cooling tank adopt stainless steel 304.
The excellent vacuum system ensures the precise sizing for pipes, spraying cooling will improve the cooling efficiency, Auto water temperature control system make the machine more intelligent.

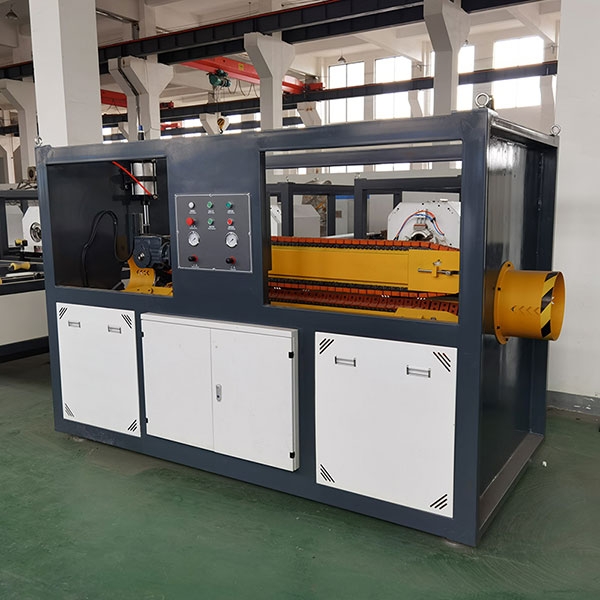

4.Haul-off Unit
For the different pipe size and different speed requirement, Far Creative developed kinds of haul-off unit accordingly.The haul-off unit equipped with single motor drive or every caterpillar with separate motor drive, there is the belt type haul-off unit, stable hauling.
For the large diameter pipe, a pipe winch device is equipped to the production line to reduced the waster material.

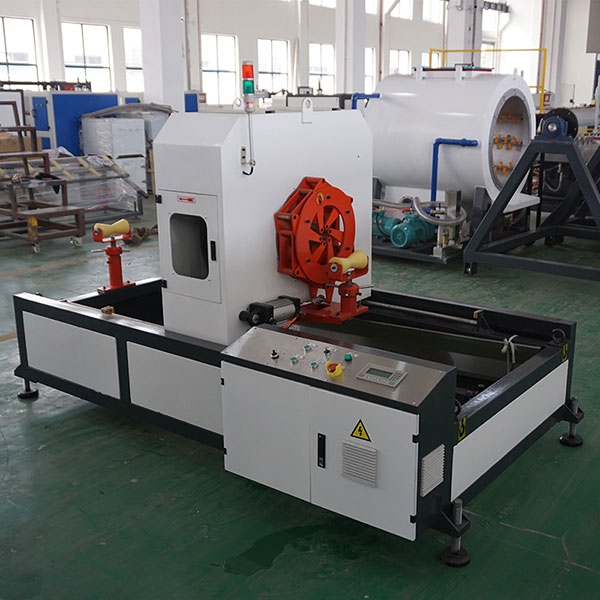

5.Cuttter
The high-speed, precise designed cutting machine is low in noise. And it is also equipped with strong scrap attracting device to reduce the work of maintenance to the lowest degree.
