1	Automatic Vacuum Feeder	1 set
2	Dryer	1 set
3	Single Screw Extruder	1 set
4	Corresponding Single Wall Corrugated Pipe Extruding Die	1 set
5	Single Wall Corrugated Pipe Molding Machine	1 set
6	Coiling Machine	1 set
7	Meter Counter	1 set

Product application

The production line adopts an energy-saving single-screw extruder; the molding machine has a gear transmission module and a die plate for excellent product cooling, which ensures high-speed molding, uniform corrugation, and smooth inner and outer pipe walls.
It is widely used in automobile wires, electric threading pipes, machine tool circuits, lamp wire protection pipes, air conditioning pipes and washing machine pipes.

Technical Parameter

Type	Extruder	Main Motor Power (KW)	Line Speed (m/min)
FCPL-SWCP-16-32	45/28	15	24
FCPL-SWCP-16-50	65/28	30	20

Detail Information

1. Single Screw Extruder

Mainly use SJ45 or SJ65 extruder ,which can keep a stable output and save the energy. The SJ45 extruder for making 9-32mm diameter corrugated tube, and SJ65 extruder for making 32-110mm.The L/D can be different when you need different output. The max stable output can reach 120kg/h.

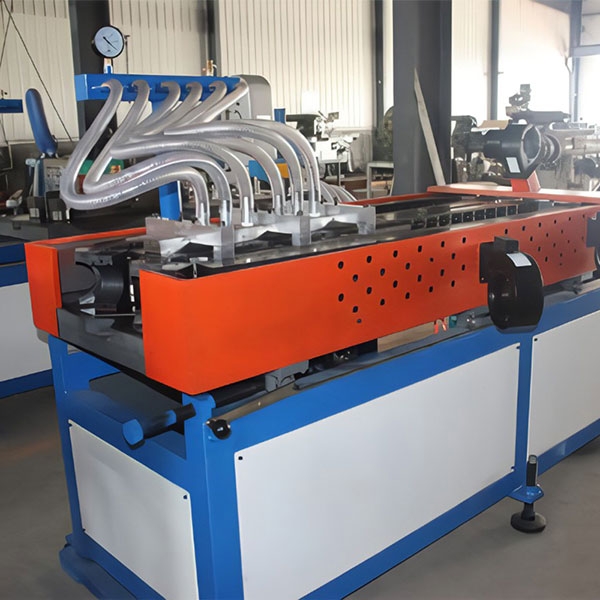

1. Corrugated Tube Molding Machine

This machine is used to shape the corrugated pipe. The mould can be discharged and changed. Corrugated tube diameter is decided by the mould, so if you want to process different diameter, you should change different mould. Our factory can also provide you with the mould.

1. Cooling Machine

It is used to reel in and packing of corrugated pipe. With electric control system it can control reeling speed accurately. And it can also control the size of reeling. It is very convenient for discharging. This machine also is widely used in other soft pipe making lines.

FAQ

Q: Is your company factory or trade company?
A: we are factory, we are engaged in this business for 11 years.

Q: Installation and stuff training available from you?
A: Yes, our engineers will guide machine installation and train your workers.

Q: What is the payment term?
A: The best way for both of us is 30% T/T deposit and 70% T/T balance payment before shipping, since we will test the machine before shipping. Of course, you can choose the way that more convenient (Payment terms: T/T, L/C, Western Union etc.)

Q: How about after service?
A:We can offer 12 months free warranty since the machinery arrived at your factory. We also offer space parts or repair service to our customer anytime and anywhere, we will send our technician to your factory if necessary.

Q: How to reach our factory?
A: It will take 40 minutes from Shanghai International Airport to our factory by car, and we will arrange our driver to pick you to our factory anytime.
