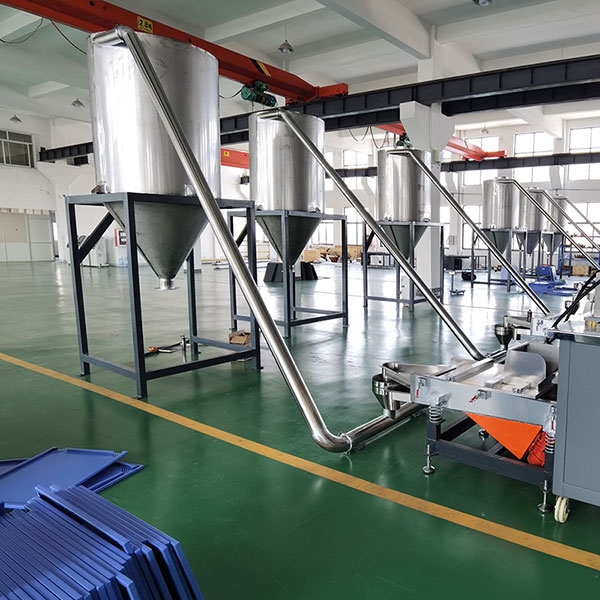

1	Screw feeder	1set
2	Single Screw Plastic Extruder	1set
3	Double column screen changer	1set
4	Horizontal water ring system	1set

Performance advantages:

Applicable to all kinds of common engineering plastics
Two-stage design, double-layer filtration, higher purity
Easy operation, uniform plasticization, full particles

Technical Parameter

Type	Screw diameter	L/D	Capacity	Motor Power	Rotating speed
FC-SJP-80-70	Φ80、Φ70	28:1、10:1	50-100	18.5/7.5	10-75
FC-SJP-90-85	Φ90、Φ85	28:1、10:1	100-150	22/7.5	10-75
FC-SJP-100-95	Φ100、Φ95	28:1、10:1	150-200	30/11	10-75
FC-SJP-110-105	Φ110、Φ105	28:1、10:1	200-250	30/11	10-75
FC-SJP-120-115	Φ120、Φ115	28:1、10:1	250-300	45/15	10-75
FC-SJP-130-120	Φ130、Φ120	28:1、10:1	300-350	55/15	10-75
FC_SJP_140_130	Φ140、Φ130	28:1、10:1	350-400	75/18.5	10-75
FC_SJP_150_140	Φ150、Φ140	28:1、10:1	400-450	90/22	10-75
FC_SJP_160_150	Φ160、Φ150	28:1、10:1	450-500	110/30	10-75
FC_SJP_180_160	Φ180、Φ160	28:1、10:1	500-600	132/37	10-75

Detail Information

1.Single Screw Extruder

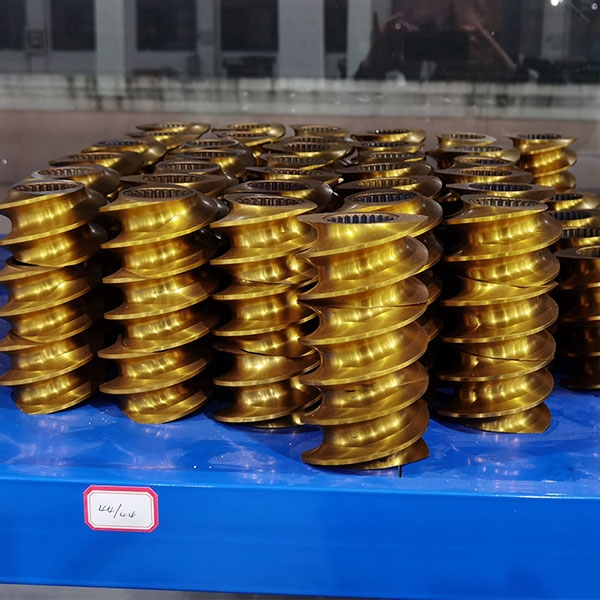

The extrusion screw is made of 38CrMoAlA, which has been nitrided and has high strength, high wear resistance and corrosion resistance. The screw structure is an equidistant gradual structure. The special feeding method of air cooling and water cooling is adopted in the feeding stage, which has high strength and large output.

2.Double column screen changer
The screen changer adopts the patented pressure-driven rigid sealing technology, which prevents leakage and prolongs the service life. The sealing interval can be automatically compensated with the use process to meet the high temperature and high pressure production.

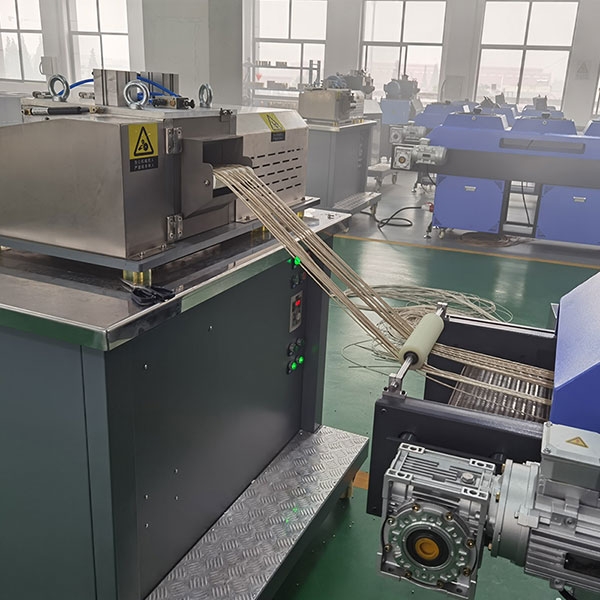

Horizontal water ring system

The surface of the runner is nitrided and polished, automatic compensation of gap between blade and die face. Unique rotating water flow prevents cooling water from splashing on the die surface.The parts in contact with water are made of stainless steel 304
Heating power: 4.5kw

FAQ

Q: Is your company factory or trade company?

A: we are factory, we are engaged in this business for 11 years.

Q: Installation and stuff training available from you?

A: Yes, our engineers will guide machine installation and train your workers.

Q: What is the payment term?
A: The best way for both of us is 30% T/T deposit and 70% T/T balance payment before shipping, since we will test the machine before shipping. Of course, you can choose the way that more convenient (Payment terms: T/T, L/C, Western Union etc.)

Q: How about after service?
A:We can offer 12 months free warranty since the machinery arrived at your factory. We also offer space parts or repair service to our customer anytime and anywhere, we will send our technician to your factory if necessary.

Q: How to reach our factory?
A: It will take 40 minutes from Shanghai International Airport to our factory by car, and we will arrange our driver to pick you to our factory anytime.
