1	Twin Screw Extruder	1set
2	Mould	1set
3	5-roller Calender	1set
4	Temperature Controller	1set
5	Edge Cutting Unit	1set
6	Haul-off Machine	1set
7	Cutting Machine	1set
8	Auto-Stacker	1set
9	Electricity Control System	1set
10	EIR Tech	1set

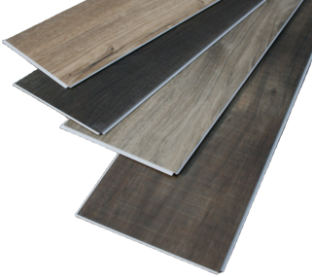

Product application

1.Environmental protection and no formaldehyde, SPC floor does not use glue in the production process, so it does not contain harmful substances such as formaldehyde and benzene. The real 0 formaldehyde green floor will not cause harm to the human body.
2.Waterproof and moisture-proof, SPC floor has the advantages of waterproof, moisture-proof, mildew-proof, etc., which solves the shortcomings of traditional wooden floors that are afraid of water and moisture, so SPC floors can be paved in bathrooms, kitchens, and balconies.
3.Anti-skid, SPC floor has good anti-skid performance, no longer have to worry about the floor becoming slippery and falling when it encounters water.
4.The weight is easy to transport, the SPC floor is very light and thin, the thickness is between 1.6mm and 9mm, and the weight per square is only 2-7.5kg, which is 10% of the weight of ordinary wooden floors.

Technical Parameter

Type	FCBM92/188	FCBM110/220
Product Size	L=970㎜, δ=3-8㎜	L=970㎜, δ=3-8㎜
Capacity	650-800KG/H	1500-1900KG/H
Calender	5-rollers calender	5-rollers calender
Roller	4×Φ450×1500mm 1×Φ600×1500mm	4×Φ450×1500mm 1×Φ600×1500mm
Surface Roughness	Ra≤0.025um	Ra≤0.025um
Surface Hardness	HRC≥50	HRC≥50
Extruder	SJSZ92/188 Twin Screw Extruder	SJSZ110/220 twin screw extruder
Main Motor	110KW Siemens motor,ABB inverter	185KW Siemens motor,ABB inverter

Detail Information

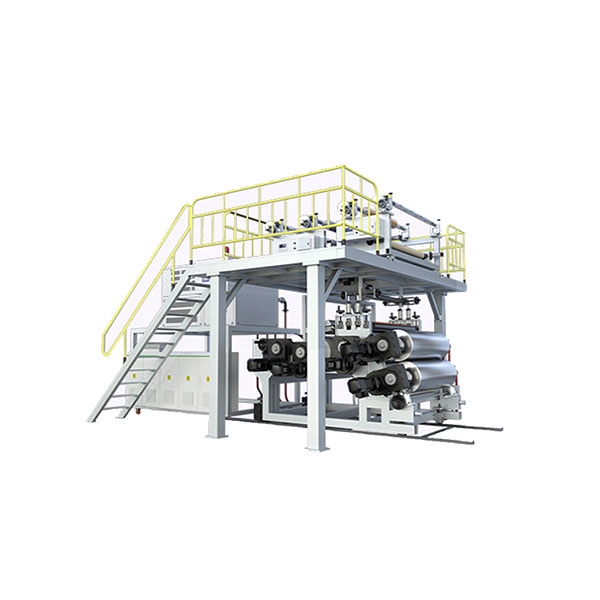

1.Calender
It is not adhesive PVC decoration film, magnetic powder brake. Film is put tighted by air swelling rollers, four-working stations. Using flattening roller to make the PVC decoration film smooth and flat, without any air bubbles. With infrared film adjusting system and tension adjust system to keep the film flat, smooth and non-deformation.

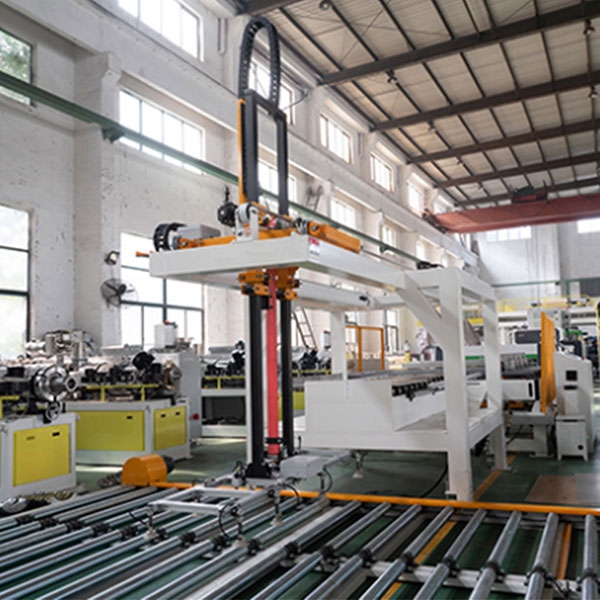

2.Stacker
The grasping and unloading plate manipulator is composed of a vacuum suction cup device, a lifting device and a moving device.
It is used for the composite movement of vertical lifting movement and horizontal movement, for picking up finished plates and profiles and arranging blank plates. The device realizes the automation of plate conveying.

3.Haul-off Unit
Working Speed Is Adjustable By Individual Inverter.
Conveying Belt Is Made From Imported Materials.
Galvanized Belt Roller.
5mm Conveying Belt.

FAQ

Q: Is your company factory or trade company?

A: we are factory, we are engaged in this business for 11 years.

Q: Installation and stuff training available from you?
A: Yes, our engineers will guide machine installation and train your workers.

Q: What is the payment term?
A: The best way for both of us is 30% T/T deposit and 70% T/T balance payment before shipping, since we will test the machine before shipping. Of course, you can choose the way that more convenient (Payment terms: T/T, L/C, Western Union etc.)

Q: How about after service?
A:We can offer 12 months free warranty since the machinery arrived at your factory. We also offer space parts or repair service to our customer anytime and anywhere, we will send our technician to your factory if necessary.

Q: How to reach our factory?
A: It will take 40 minutes from Shanghai International Airport to our factory by car, and we will arrange our driver to pick you to our factory anytime.
