Wood Plastic Composite Machine PVC Profile Extrusion Production Line
- Direct supply from the manufacturer
- Order phone：+86-18921993349
- Inquiry
Detail
|
1 |
Twin Screw Plastic Extruder |
1set |
|
2 |
Mould |
1set |
|
3 |
Vacuum Forming Table |
1set |
|

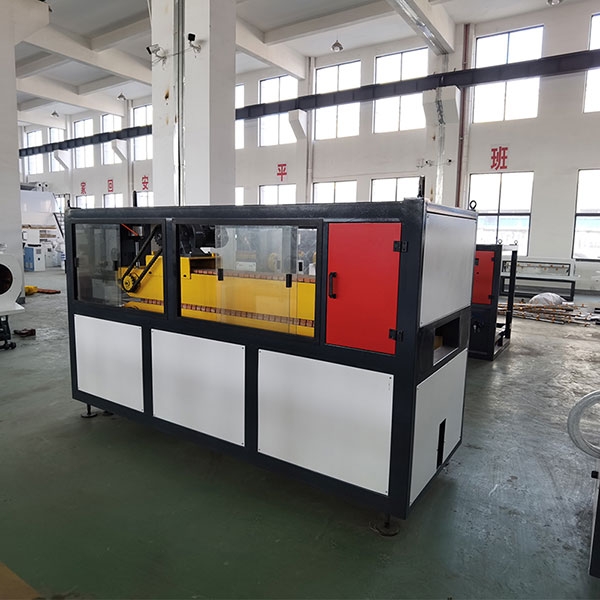

4 |
Hauling Machine |
1set |
|
5 |
Pipe Cutting Machine |
1set |
|
6 |
Stacking Rack |
1set |
Product application
Profile extrusion production line is mainly used for PVC door and window profiles, PE and PVC wood-plastic profiles, decorative profiles and other products. According to different profiles and molds, different specifications of extruders can be selected to meet the needs of output. According to different molds, the setting table can choose 4 meters,6 meters,8 meters,10 meters and other specifications to meet the requirements of high-speed extrusion. In the case of production line, according to customer needs, add mixing system.
Technical Parameter
| Specifications | |
|
Machine Model |
YF |
|
Processed Material |
PVC,PE,HDPE PPR and etc. |
|
Final Product Shape |
PVC Board |
|
Output Range(kg/h) |
220-250 |
|
Diameter of screw |
50mm-110mm(standard) |
|
Voltage Standard |
According to the Voltage of the Customer's Location |
|
Warranty |
12 months from the date of bill of lading |
|
Technical Services |
Project design, factory construction, installation and recommendations, commissioning |
|
Maximum Width(mm) |
Conical twin-screw extruder |
Motor(KW) |
Max.Capacity(KG/H) |
|
180 |
SJZ51/105 |
18.5/22 |
80-120 |
|
240 |
SJZ65/132 |
37 |
175-250 |
|
300 |
SJZ65/132 |
37 |
175-250 |
|
400 |
SJZ65/132 |
37/55 |
175-250 |
|
600 |
SJZ65/132 |
37/55 |
175-250 |
|
800 |
SJZ80/156 |
55 |
280-350 |
|
1000 |
SJZ80/156 |
75 |
320-450 |
|
1200 |
SJZ92/188 |
110 |
500-600 |
|
1600 |
SJZ110/220 |
200 |
700-900 |
|
2400 |
SJZ110/220 |
200 |
700-900 |
Detail Information

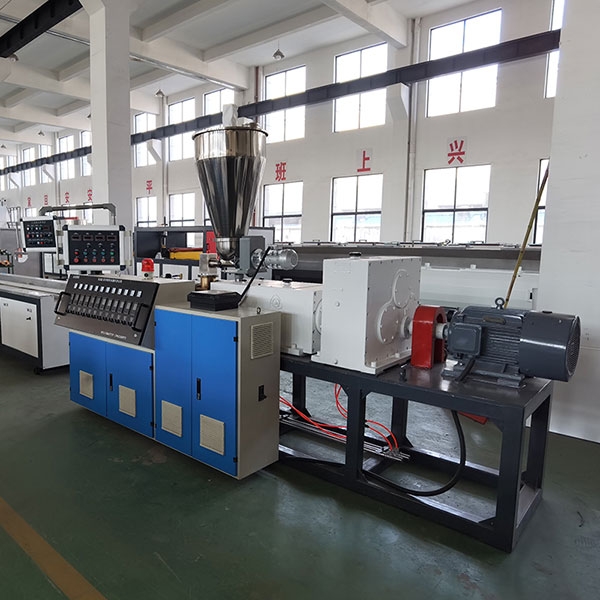

1.Twin Screw Extruder
The extruder of PVC profile production line adopt high efficiency screw & barrel, notched feeding cylinder and is equipped with strong water jacket cooler, which greatly improves its transmission capacity and guarantees high-efficiency extrusion. the gearbox is hardening teeth gearbox with self-lubrication system. The motor adopt Siemens standard motor and speed controlled by ABB inverter. The control system adopts Siemens PLC control or button control.
2.Die Mould
Spacious flow channel design to guarantee high extrusion capacity and good melt.
Optimized temperature control and flow channel design, precise melt temperature control.
3.Vacuum Calibration Tank
The shaping table is made of 304 stainless steel, and the main shaping part is made of materials such as brass, steel or aluminum to reduce wear and chrome plating.
High-precision high-quality water ring vacuum pump ensures a stable vacuum environment. The cooling is realized by a water bath, the cooling and heating are uniform, and the production process is simple and convenient.
|
Maximum shape range(mm) |
Forming table length(mm) |
Number of fans |
Vacuum pump power (kw) |
Pump power (KW) |
|
180 |
4000 |
1 |
1*3 |
1*2.2 |
|
240 |
6000 |
1 |
2*5.5 |
1*4 |
|
300 |
6000 |
2 |
2*5.5 |
1*4 |
|
400 |
6000 |
2 |
2*5.5 |
1*4 |
|
600 |
6000 |
2 |
3*5.5 |
1*4 |
|
800 |
6000 |
2 |
customized |
customized |
|
1000 |
8000 |
2 |
customized |
customized |
|
1200 |
8000 |
2 |
customized |
customized |
|
1600 |
8000 |
2 |
customized |
customized |
|
2400 |
8000 |
2 |
customized |
customized |

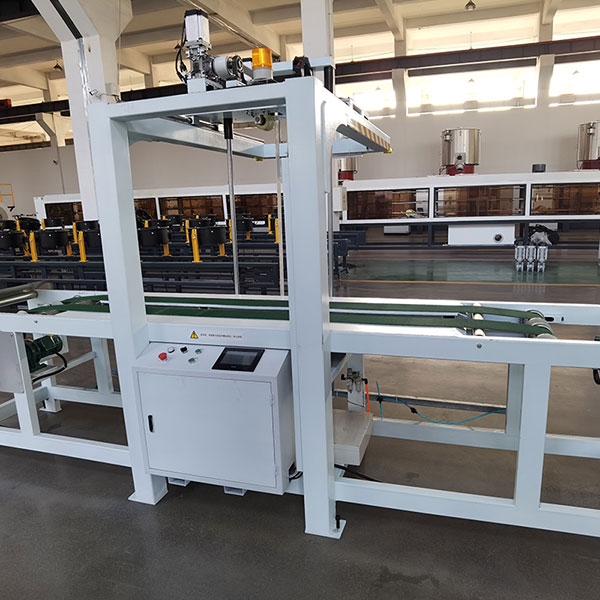

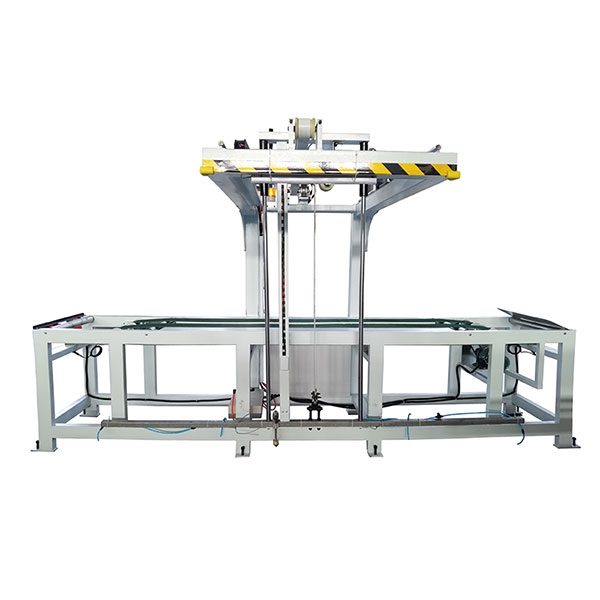

4.Manipulator
The grasping and unloading plate manipulator is composed of a vacuum suction cup device, a lifting device and a moving device.
It is used for the composite movement of vertical lifting movement and horizontal movement, for picking up finished plates and profiles and arranging blank plates. The device realizes the automation of plate conveying
FAQ
Q: Is your company factory or trade company?A: we are factory, we are engaged in this business for 11 years.
Q: Installation and stuff training available from you?
A: Yes, our engineers will guide machine installation and train your workers.
Q: What is the payment term?
A: The best way for both of us is 30% T/T deposit and 70% T/T balance payment before shipping, since we will test the machine before shipping. Of course, you can choose the way that more convenient (Payment terms: T/T, L/C, Western Union etc.)
Q: How about after service?
A:We can offer 12 months free warranty since the machinery arrived at your factory. We also offer space parts or repair service to our customer anytime and anywhere, we will send our technician to your factory if necessary.
Q: How to reach our factory?
A: It will take 40 minutes from Shanghai International Airport to our factory by car, and we will arrange our driver to pick you to our factory anytime.
